    Customizable Steel Tubular Pole For Different Customer Requirements

    Ask Lasest Price
    Brand Name : MilkyWay
    Model Number : Steel Tubular Pole
    Certification : ISO9001/BV/
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 300pcs per day
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    Customizable Steel Tubular Pole For Different Customer Requirements

    16.5m Gr65 Material Steel Transmission Poles Lattice Welded Steel Power Pole


    Description:

    Type

    Straight Pole ,Tensile Pole ,Turn Pole

    Suit for

    Electricity distribution

    Shape

    Conoid ,Multi-pyramidal,Columniform,polygonal or conical

    Material

    Usually Q345B/A572,minimum yield strength>=345n/mm2

    Q235B/A36,minimum yield strength>=235n/mm2

    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

    SS400, SS490, to ST52-

    Lamp power

    20 W- 400 W (HPS/MH)

    220V (+-10%) /50Hz

    Torlance of the dimenstion

    +- 2%

    Power

    10 KV ~550 KV

    Safety Factor

    Safety factor for conducting wine : 8

    Safety factor for grounding wine : 8

    Design Load in Kg

    300~ 1000 Kg appliced to 50cm from the to pole

    Marks

    Nane palte through rivert or glue ,engrave ,emboss as per

    customer requirement

    Surface treatment

    Hot dip galvanized Following ASTM A 123,color polyester

    power or any other standard by client required.

    Joint of Poles

    Insert mode,innerflange mode,face to face joint mode .

    Design of pole

    Against earthquake of 8 grade

    Wind Speed

    160 Km/Hour

    Minimum yield strength

    355 mpa

    Minimum ultimate tensile strength

    490 mpa

    Max ultimate tensile strength

    620 mpa

    Standard

    ISO 9001

    Length of per section

    Within 14m once forming without slip joint

    Welding

    We has past flaw testing.Internal and external double welding makes

    the welding beautiful in shape Welding Standard :AWS ( American

    Welding Society ) D 1.1

    Thickness

    1 mm to 30 mm

    Production Process

    Rew material test → Cuttingj →Molding or bending →Welidng

    (longitudinal )→Dimension verify →Flange welding →Hole drilling

    →Calibration → Deburr→Galvanization or powder coating ,painting

    →Recalibration →Thread →Packages

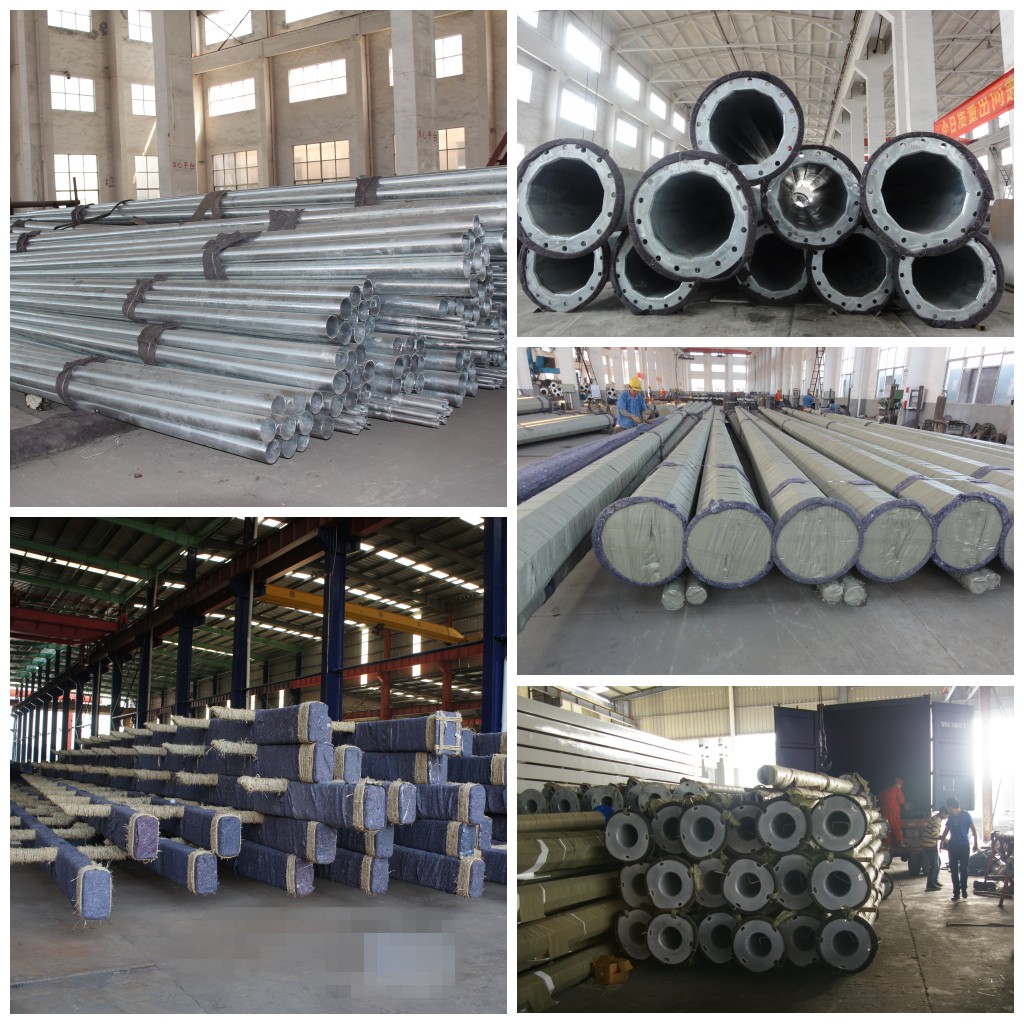

    Packages

    Our poles as normal cover by Mat or straw bale at the top and bottom ,

    anyway also can following by client required , each 40HC

    or OT can loading how many pcs will calculation base on the client

    actually specification and data.


    Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

    We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.



    Inspection:


    Our Servises:


    1 Reply your inquiry in 24 working hours.


    2 Experienced staffs answer all your questions in fluent English.


    3 Customized design is available. UEM&UBM are welcomed.


    4 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


    5 Special discount and protection of sales are provided to our distributor.


    6 Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.


    7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.


    8 As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.


    if you have any question or need additional information ,pls feel free to contact me !
