Electrical stainless steel ground rod with all kinds of clamps
Specifications:
Tell us your specific requirements (customized diameter, copper
thickness, length) or provide complete drawings and specifications
can get a quotation.
Model | Diameter(mm) | Copper Thickness(mm) | Screw Thread | Length Range(m) |
YH-A001 | 12.7 | ≥0.25 | 9/16 | 1—3 |
YH-A002 | 14.2 | ≥0.25 | M16 | 1—3 |
YH-A003 | 16 | ≥0.25 | M18 | 1—3 |
YH-A004 | 17 | ≥0.25 | 3/4 | 1—3 |
YH-A005 | 18 | ≥0.25 | M20 | 1—3 |
YH-A006 | 20 | ≥0.25 | M22 | 1—3 |
YH-A007 | 22 | ≥0.25 | M24 | 1—3 |
Description:
| Item Number | copper weld steel ground rod |
| Copper layer thickness | >=0.254mm |
| Tensile strength | >=600Nm/mm2 |
| Straightness error | <=1mm/m |
| Service life | >=50years |
| Function | Used in grounding and lightning system |
| Type | Threaded or flat or pointed |
| Plasticity of copper layer | No crack under U bent |
| Available service mode | OEM;ODM |
| Certificate | CE,UL467,ISO9001:2008 |
Applications:
Widely used in power plants, substations, transmission line towers,
communication base stations, airports,railways, all kinds of high
rise buildings, microwave relay stations, network drive housing,
petrochemical
plants, oil storage facilities and other places of lighting
protection and grounding, anti static grounding,
protective grounding.

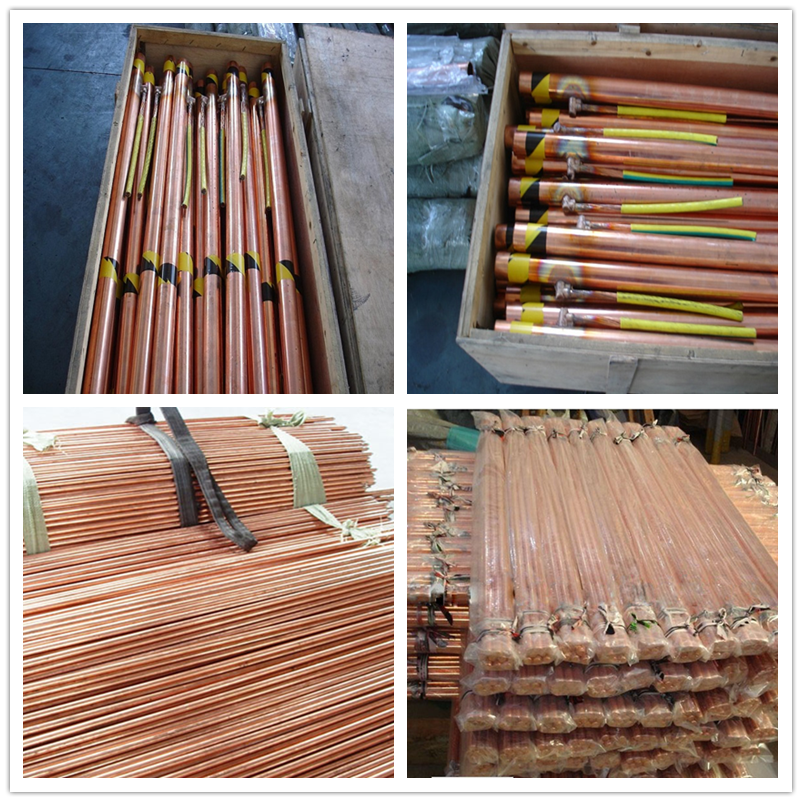

Packaging & Shipping:
Strong packing is available and free of charge ,which is suitable
for loading, storage in most popular
condition .Custom packing will be charged reasonably to favor
customer’s requirement .
Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in
Wuxi,East of China ,near one of the largest sea port of China
,Shanghai,Port .Our Products have been widely used in the power
transmsion ,signal transmission and ligting for street ,road
,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas
order from Pakstan in 1991 of 132 KV transmission poels ,our
products have been deliveried to more than 70 contries and areas
,including America,Australia ,Russia ,Genmery ,Span,Philippines
,Malaysia and so on.
