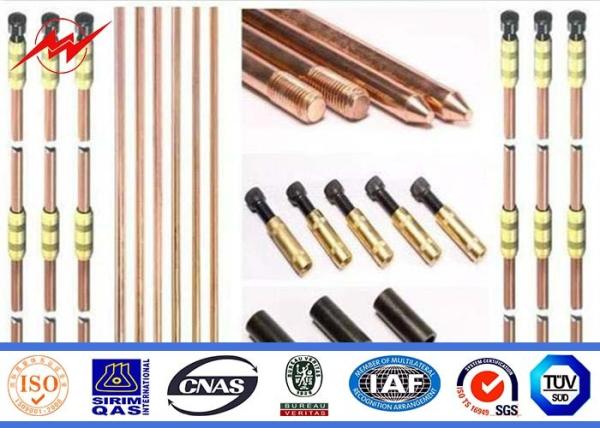

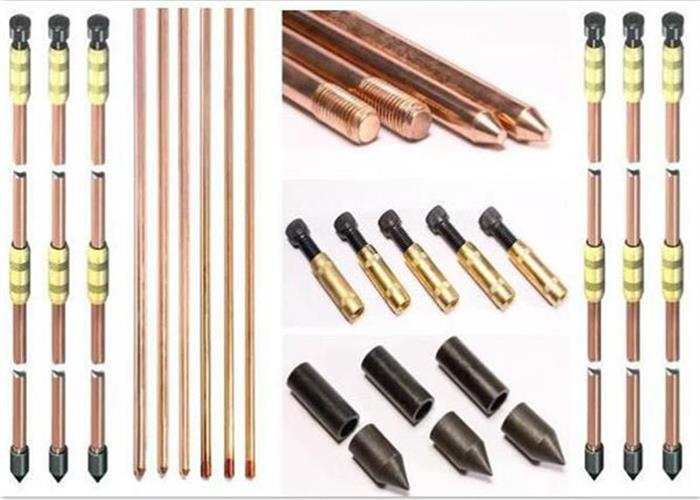

1/2" 5/8" 3/4" copper clad steel ground rod with ground rod
accessories
Specifications:

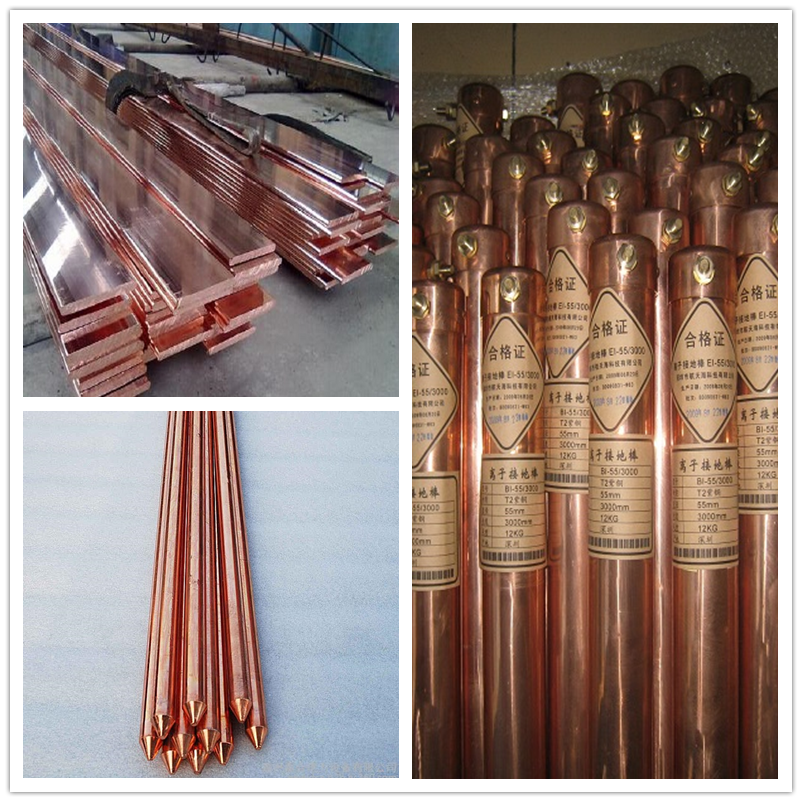

Copper Ground Rod using special electro forming technology, plating 99.9% pure copper uniformly
to the high quality low carbon steel core, through cold drawn process, to make tensile strength stronger, and maintaining toughness, with thick copper, well agglutination and so on. Have constant low
resistance and good plasticity, both with the same electrical
conductivity of copper and also have the steel characteristics. Conventional copper layer thickness is 0.254mm,
0.33mm, 0.5mm, 1.0mm.
Model | Diameter(mm) | Copper Thickness(mm) | Screw Thread | Length Range(m) |
YH-A001 | 12.7 | ≥0.25 | 9/16 | 1—3 |
YH-A002 | 14.2 | ≥0.25 | M16 | 1—3 |
YH-A003 | 16 | ≥0.25 | M18 | 1—3 |
YH-A004 | 17 | ≥0.25 | 3/4 | 1—3 |
YH-A005 | 18 | ≥0.25 | M20 | 1—3 |
YH-A006 | 20 | ≥0.25 | M22 | 1—3 |
YH-A007 | 22 | ≥0.25 | M24 | 1—3 |
Description:
Copper bonded ground rod is mainly used in the grounding device.
Due to its good conductivity, corrosion resistance, tensile
strength, low prices, etc.,
Copper bonded ground rod can be widely used, and have been
recognized by the United States Institute of Electrical and
Electronics Engineering (IEEE) standard, BS standard and
International Electrotechnical Commission (IEC) standards.
In China, have been recognized in China Sinopec, China National
Petroleum, the national electricity company, and gradually be
widely used.
Packaging & Shipping:
Strong packing is available and free of charge ,which is suitable
for loading, storage in most popular
condition .Custom packing will be charged reasonably to favor
customer’s requirement .
Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in
Wuxi,East of China ,near one of the largest sea port of China
,Shanghai,Port .Our Products have been widely used in the power
transmsion ,signal transmission and ligting for street ,road
,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas
order from Pakstan in 1991 of 132 KV transmission poels ,our
products have been deliveried to more than 70 contries and areas
,including America,Australia ,Russia ,Genmery ,Span,Philippines
,Malaysia and so on.
