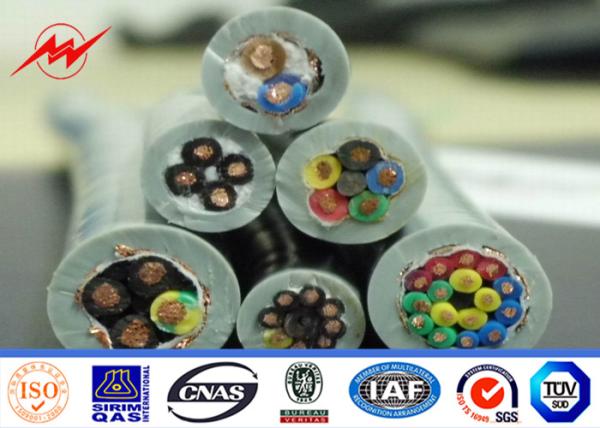

Copper/Aluminum Alloy conductor electrical wire PVC insulated for power transmission.

Specifications:

Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

Packing

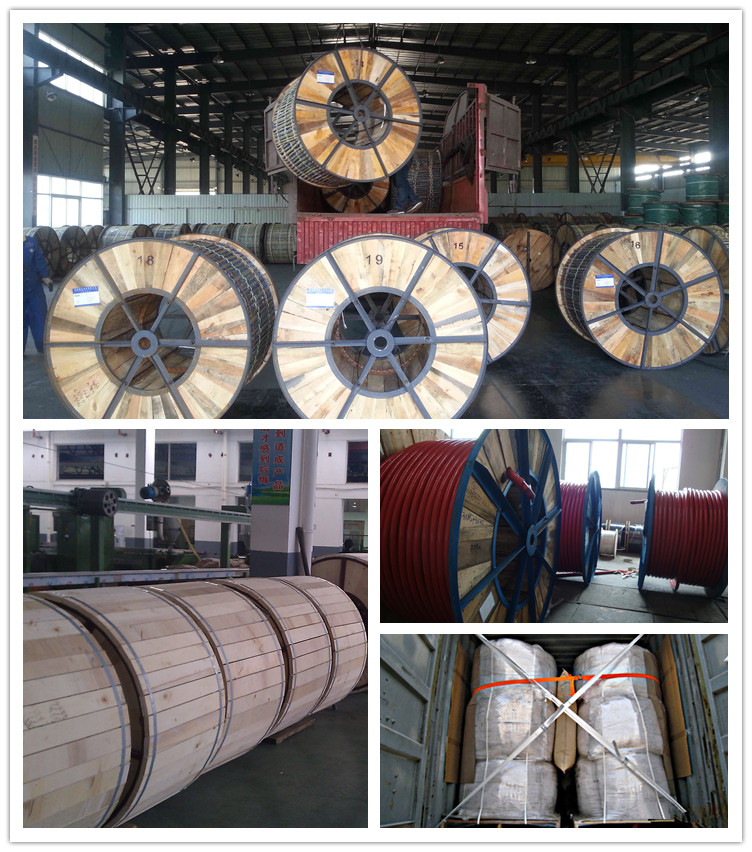

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement

FAQ

Inquiry response: Your kind inquiry will be replied in 24 hours;

Sample: all cable sample is avaliable, the sample is for free;

OEM & ODM are acceptable to us;

Warranty period: 12 months

Estbilsed  in 1989,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan  in  1991 of 132 KV transmission poels ,our products have been deliveried  to more than 70 contries and areas ,including America,Australia ,Russia  ,Genmery ,Span,Philippines ,Malaysia and so on

To assure our products qualified ,we take steps as follows :

1. Management  team : We have employ the foreign export  to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3. Lofting and design software :We have  transmisson power pole design software which can help us design all kinds of steel pole  ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

4. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .

We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions .
