5m Powder Coating Gr50 material Traffic Light Signals with single
bracket for Street Way
Quick Details for Traffic Light Pole
Option | Height from 3m to 45m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm
type
Variable spigot size from 35mm to 60mm. |
Production Process | Raw material test → Cutting → bending →Welidng (longitudinal
)→Dimension verify →Flange welding →Hole drilling →Calibration
→Deburr→Galvanization or powder coating ,painting →Recalibration
→Thread→Packages |
Design for Traffic Light Signals
MATERIAL
Material used to fabricate the pole components will be in
accordance of international standards and as per the project
specifications.
Main Material is Q235,Q345,Gr65 or as specified in the customer
specification.
FINISHING
Shaft, Base plate, Arm Bracket and other accessories are hot dip
galvanized according to BS EN 1461 and its recent revisions, the
minimum average coating thickness is according to BS EN 1461, or as
per the customer requirements, but not more than 70 microns
average.
No welding, cutting or drilling is done after galvanizing.
The anchor bolts including nuts and washers are rough black or hot
dip galvanised according to ASTM A 123 as per customized
requirement.
SHAPE
1. Height:The street lighting Poles of heights from 4m up to 20m
covering almost all of the outdoor street lighting requirements,
are usually made out of tapered steel shafts with octagonal or
conical shape, with dimensions complying with the design structural
analysis, international standards requirements, and as per customer
requirements.
2. Pole Sections: Only poles with heights up to 12 meters are made
from one shaft segment. Poles up to 20m in height are made from two
segments with minimum overlap length of 1.5 times the diameter of
bottom of the upper segment.
3. Shafts: Shafts are made from steel sheet folded to the required
shape and welded longitudinally by automatic arc welding machine.
4. Base Plate: Base plate is square in shape with slotted holes
suitable for anchor bolts. Base plate is welded to the bottom of
the shaft by double fillet weld, according to International
standards.
5. Brackets: The brackets to carry the light fittings are in shape
and dimensions complying with the customer requirements and the
specifications of the light fittings. Shaft top is equipped with
nuts welded to the shaft as shown on our drawings.
6. Anchor Bolt: Anchor bolts to fix the base plate to the concrete
foundation are supplied with the required nuts and washers as per
the structural analysis.
7: Service Door: Door opening size and location is as per the
customer requirements and its complying with the dimensions of the
cut-out. Door opening is reinforced to maintain shaft strength.
8. Lamp:LED light is available or specified in the customer
requirement.

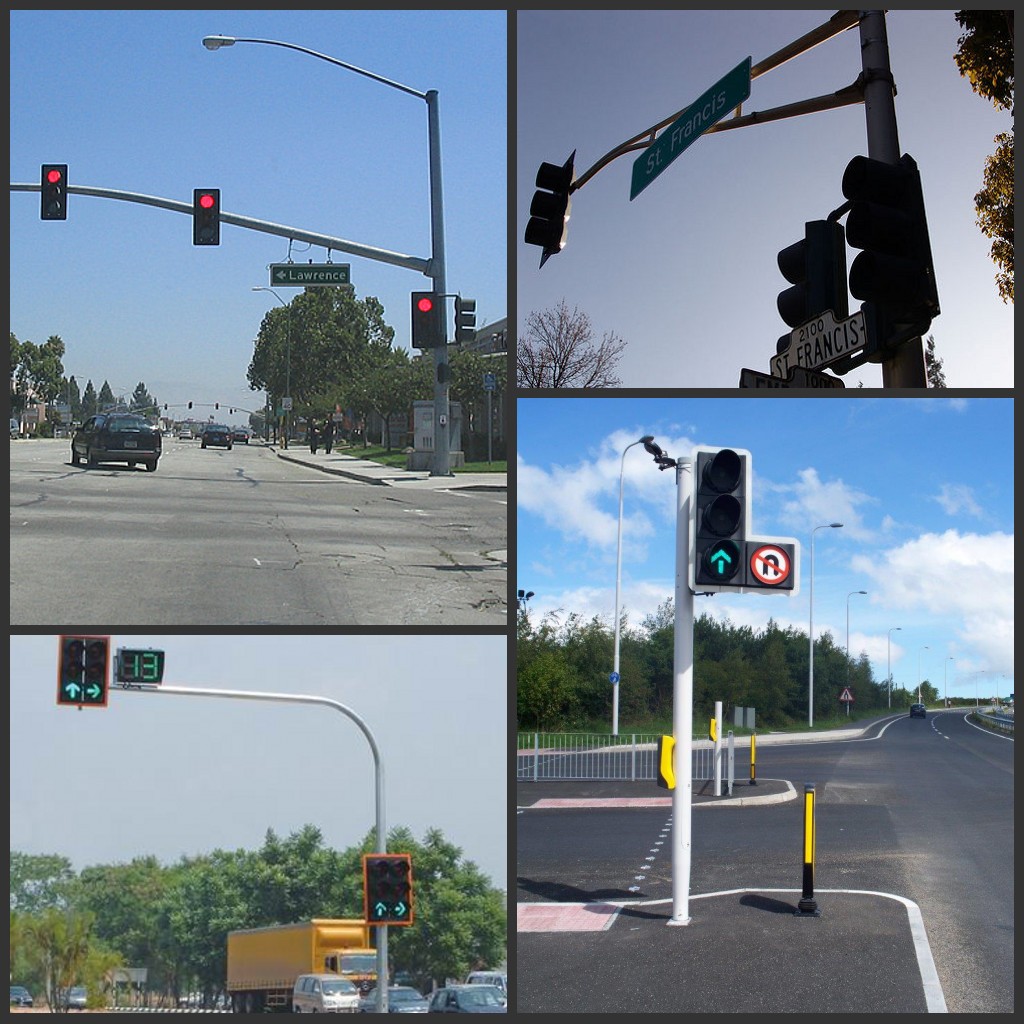

Traffic Light Pole Design
Workshop:
Company:
Jiangsu Milky Way specialize in offering a wide range of Octagonal
Poles that is used in street light poles. These poles are
fabricated using high grade raw material like steel Q235 and latest
technology as per the international quality standards. Moreover,
these are available in customized options to suit the varied
requirements of the clients.
