132KV 15m transmission electrical steel power pole hot dip glavanized for the Aferica

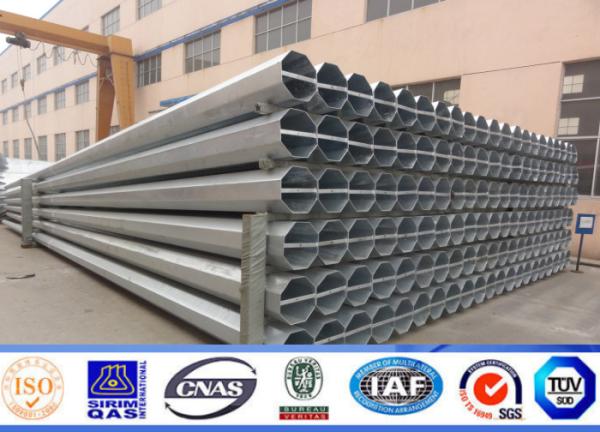

Products Picture

Material

ASTM 572 grade 50 with yield strength not less than 345mpa

3.Glavanization

---Average thickness of the galvanization : not less than 86 μm

4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

6. The information to inquiry or purchase

---Steel pole height and force

---Cross arm type and length, the position to install in the steel pole

---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in

the steel pole to install the cross arm)

---Safety factor of the steel pole.

---wind speed

---Type of climbing rung

---Destination port

Application

Company instruction:

Estbilsed  in 1989,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan  in  1991 of 132 KV transmission poels ,our products have been deliveried  to more than 70 contries and areas ,including America,Australia ,Russia  ,Genmery ,Span,Philippines ,Malaysia and so on

To assure our products qualified ,we take steps as follows :

1. Management  team : We have employ the foreign export  to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3. Lofting and design software :We have  transmisson power pole design software which can help us design all kinds of steel pole  ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

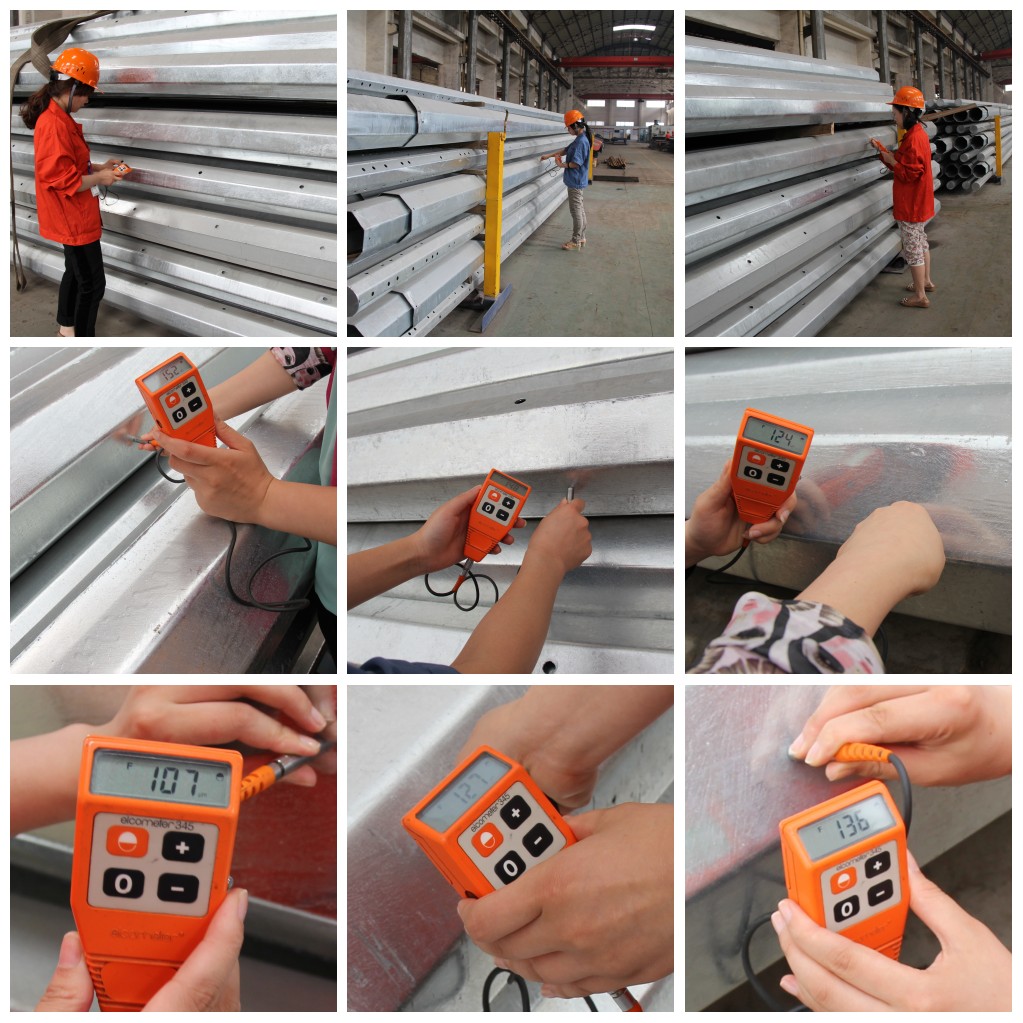

4. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .

We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions .
