    40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung

    Ask Lasest Price
    Brand Name : MilkyWay
    Model Number : High Mast Pole
    Certification : ISO9001/BV/
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 300pcs per day
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    40M 8mm Thickness Plaza High Mast Lighting Pole With Climbing Rung

    Galvanized 40M 8mm High Mast Pole for Plaza Lighting with Climbing Rung


    Specifications:


    Specification:

    20-50 meters high mast pole

    Type

    high mast pole

    Shape

    conical, hexagonal and octagonal

    Material

    Usually Q345B/A572,minimum yield strength>=345n/mm2
    Q235B/A36,minimum yield strength>=235n/mm2
    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

    SS400, SS490ST52

    Torlance of dimenstion

    -0.02

    Design Load in Kg

    300~ 1000 Kg appliced to 50cm from the to pole

    Surface treatment

    Hot dip galvanized Following ASTM A 123, color polyester

    power or any other standard by client required.

    Standard

    Octagonal Conical tapered column
    Certified by SIRIM QAS INTERNATIONAL.
    Approved by JABATAN KERJA RAYA MALAYSIA.
    Conforms to Standard:
    Pole design : BS EN 40
    Material : BS EN 10025 S275 / JIS G3101 SS400
    Welding : BS 5135
    Galvanizing : BS 729 / ISO 1461 ASTM A 123

    Length of per section

    Within 14m once forming without slip joint.

    high mast pole suit for

    city square,wharf,stadium

    Option of high mast pole

    Height from 20m to 35m
    Flange mounted or planted type

    Production Process of high mast pole

    Raw material test → Cutting →Molding or bending →Welidng

    (longitudinal )→Dimension verify →Flange welding →

    Hole drilling →Calibration →Deburr→Galvanization or

    powder coating ,painting →Recalibration→Thread →Packages


    Welding

    Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard

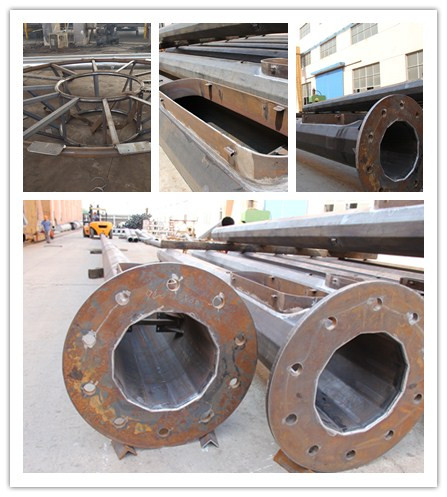

    More Photos:


    Company Introduction:
    Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
    Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
    We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
    We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
