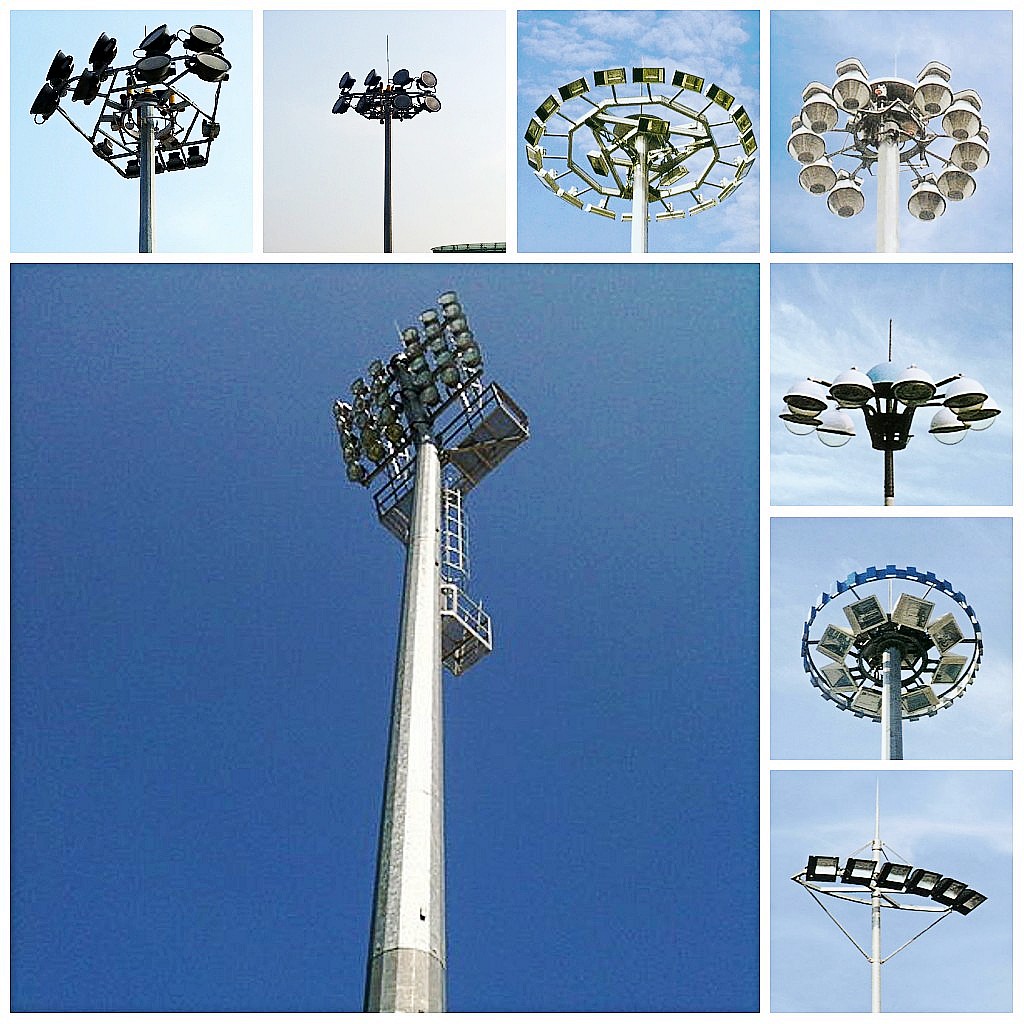

20m Port High Mast Lighting Poles Hot Dip Galvanization OEM
Customized

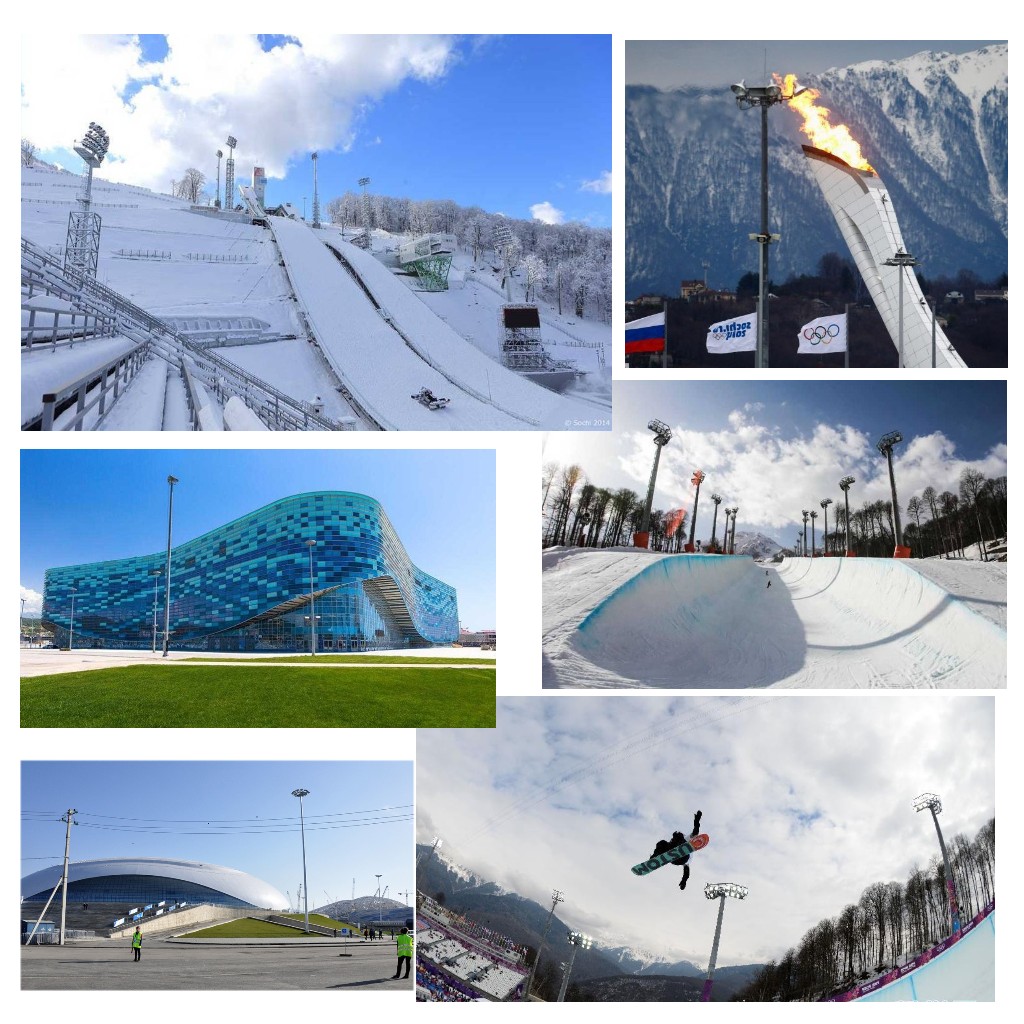

OVERSEA SUCCESSFUL PROJECT for SOCHI
| Height | 20M |
| Suit for | Airport ,seaport, plaza, stadium ,square, highway ,street way etc |
| Shape | Conoid ,Multi-pyramidal, Columniform , polygonal or conical
|
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52- |
| Lamp power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade Ⅰ |
| The casing anti-corrosion performance | Class Ⅱ |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required.
|
| Joint of Poles | Insert mode, innerflange mode ,face to face joint mode .
|
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing. Internal and external double welding
makes the welding beautiful in shape Welding Standard :AWS (American Welding Society ) D 1.1
|
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration → Deburr →Galvanization or powder coating ,painting
→Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and
bottom ,anyway also can following by client required , each 40HC or
OT can loading how many pics will calculation base on the client
actually specification and data.
|
| Style | Size and styles are veriable as per customer request |
CERTIFICATION
As an BV, ISO, approved supplier in China, we have more than 20
years produce and export steel pole ,and we can assure the pole we
offered is of sound quality which made from qualified material with
our professional workers and advance equipment.
1. All of our material are purchased from famous mill factory to
assure the quality
2. A mill certificate issued by the mill factory with stamp and
signature must be provided before unload the material in our
factory; otherwise we have our reason to refuse the material.
3. Before put into production, all the material must pass the
chemical and physical analysis to make sure that they have met the
requested strength and component.
Design
Lofting and design software :We have transmission power pole design software which can help us
design all kinds of steel pole ,at the same time ,the TMA and LMA
are adopted by us to provide the design the drawing accuratly.
details
company
Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in
Wuxi ,East of China ,near one of the largest sea port of China
,Shanghai ,Port .
Our Products have been widely used in the power transmission
,signal transmission and lighting for street ,road ,square
,palaestra . and so on
We have plenty of export experience . Since our first overseas
order from Pakistan in 1991 of 132 KV transmission poles ,our
products have been deliveried to more than 70 countries and areas
,including America ,Australia ,Russia ,Genmery ,Span, Philippines
,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we
offered is of sound quality which made from qualified material with
our professional workers and advance equipment .
FAQ
Trade terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor
part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price,
please specify which exact model you need, and tell us your order
quantity so that we can calculate the local transport charges and
sea freight.
2. MOQ: 1 sets.
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C
at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic paper or according to clients requirement.
5. Delivery: for 30 sets, goods can be ready for shipment within 10
workdays after receiving deposit.
6. Parts Design Service Period: 20 years.
Q1. How can I get a price of needed pole? |
A: 1. Please give the exactly dimensions such as height, thickness,
material, top and bottom dia. We can according to your
specification give you a similar price. 2. You can send us a drawing; we can according to your drawing give
you one price. |
| Q2. I am a small wholesaler, do you accept small order? |
| A: It's no problem if you are a small wholesaler; we would like to
grow up with you together. |
| Q3. I am a designer; Can you help me to produce the sample which we
designed? |
| A: Our mission is to help customers to be successful. So it's
welcome if we can help you solve problem and make your design come
true. |
| Q4. We want be your agent of our area. How to apply for this? |
| A: Please send your idea and your profile to delia @yin-he.com |
| Q5. Tell me about your company? |
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a
manufacturer and exporter of all kinds of steel poles, including
street lighting pole, power transmission pole, floodlighting pole for large squares and
other steel products since 1991.Our poles have been exported to
more than 70 countries and areas. |
| Q6. Do you have some special policies for Brand company? |
A:Yes, we have some special support for the company who has own
brand but also in our VIP customers list. Please send us your
selling data of last year. So we can see how to support you for your
products in your market. |
| Q7. Can you make Door to Door service? Because i don't know how to
do customs clearance. |
A:Yes. We can make Door to Door service to help you save much time
of shipping. Also we have big discount with shipping company
because we have do much of this every day. So it will save your time also
money. |
