Hexagonal / Octagonal 30m high mast lighting pole automatic With Aotumatic Hoisting System

Specifications:
1.Height: 20 m ~ 80 m.
2.Max length per section: 14 m
3.Thickness: 2.5mm ~ 30 mm
4.Shape: Conical or polygongal tapered
5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
6.Lamp Power: 250W ~ 2000W (HPSL / MH)

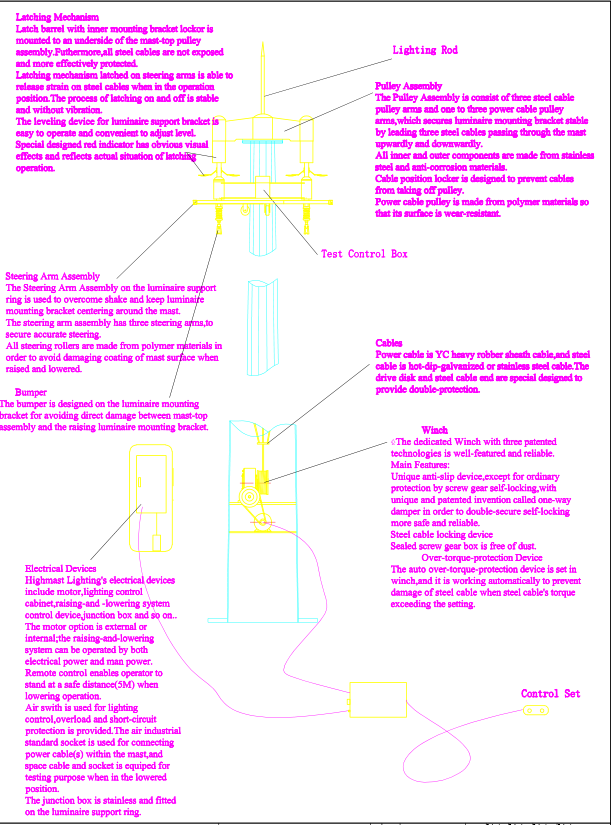

7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial antenna.
9.Finish: hot dipgalvanization, blasting, powder coating, painting.
10.Galvanization standard: ASTMA 123 / EN ISO 1461
11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2
Design: We have our standard pole with our design, OEM and ODM is also accpetable
Packages: Standard seaworthy
Delivery time: with two weeks after confirm the order.

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.

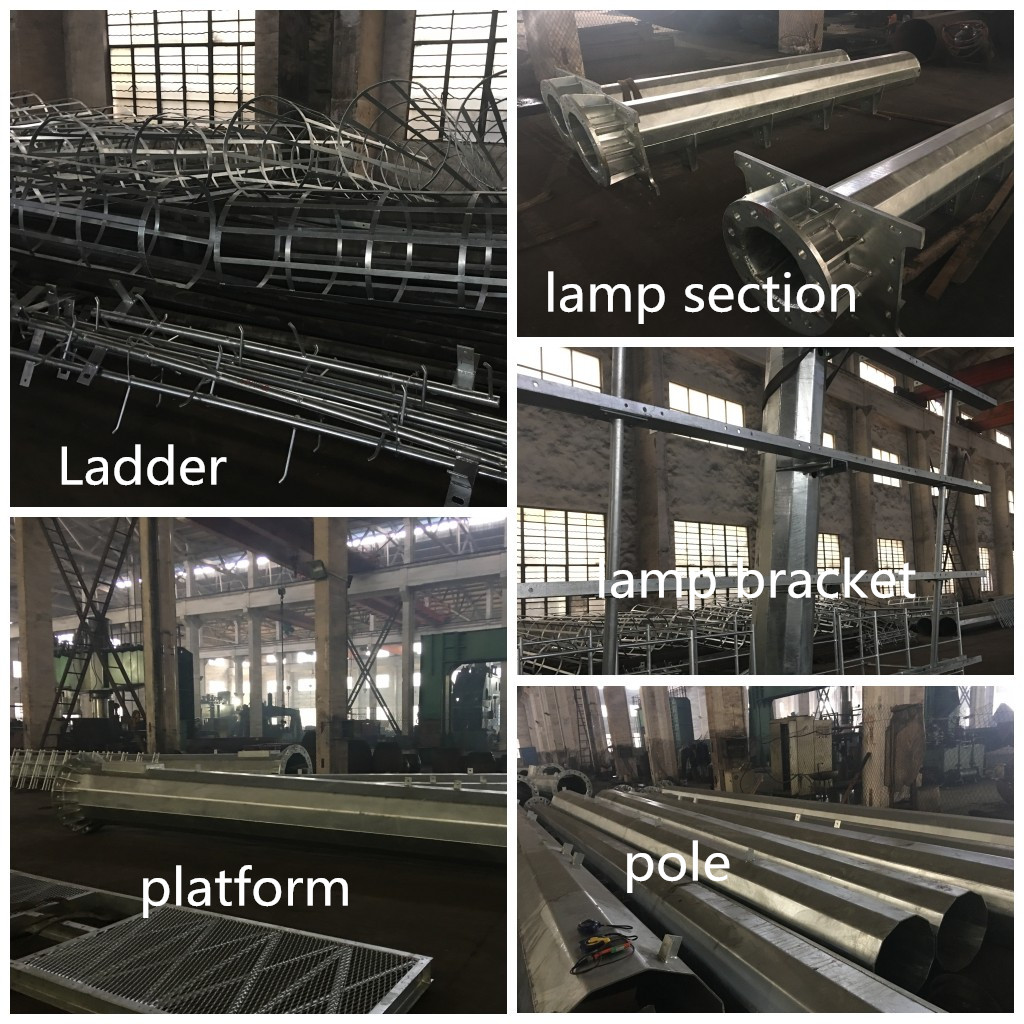

More Photos:

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

Estbilsed  in 1989,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan  in  1991 of 132 KV transmission poels ,our products have been deliveried  to more than 70 contries and areas ,including America,Australia ,Russia  ,Genmery ,Span,Philippines ,Malaysia and so on

To assure our products qualified ,we take steps as follows :

1. Management  team : We have employ the foreign export  to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3. Lofting and design software :We have  transmisson power pole design software which can help us design all kinds of steel pole  ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

4. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .

We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions .
