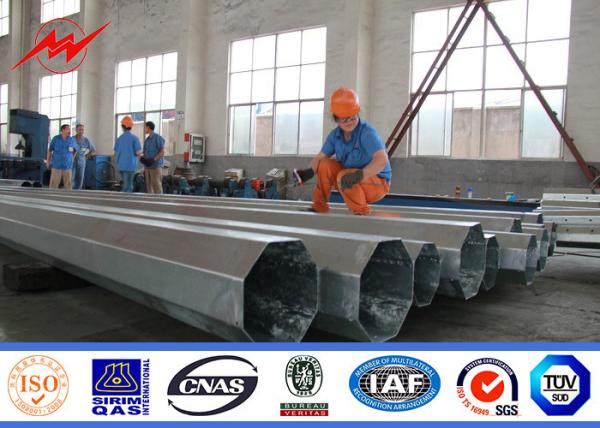

Q345 Customized High Voltage Steel Tubular Pole With Cross Arm
| Height | 6m to 12m |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Application | Airport ,seaport,plaza,stadium ,square,highway,street way |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52- |
| Lamp Power | 20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade Ⅰ |
| The casing anti-corrosion performance | Class Ⅱ |
Working atmosphere of lighting fixture | -35 ℃~+45 ℃ |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color
polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes
the
welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal
)→Dimension verify →Flange welding →Hole drilling →Calibration →
Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and
bottom,anyway also can following by client required , each 40HC or
OT can loading how many pcs will
calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request
|
The basic structure :
Road traffic signal pole , flag pole by pole , connecting flanges ,
shape of the arm , mounting flange and embedded steel structure.
Pole or cross arm take straight seam steel pipe or seamless steel
pipe,pole and cross arm connection end use the same steel tube as
the cross arm.
welding strengthen board for protection,Pole and base connect with
flange and embedded bolts,welding strengthen board for
protection,cross arm and pole end connect with flange,welding
strengthen board for protection.
Description:
Our Products have been widely used in the power transmsion ,signal
transmission and ligting for street ,road ,square ,palaestra.and so
on.
We have plenty of export experience . Since our first overseas
order from Pakstan in 1991 of 132 KV transmission poels ,our
products have been deliveried to more than 70 contries and areas
,including America,Australia ,Russia ,Genmery ,Span,Philippines
,Malaysia and so on.
Our Servises:
1 Reply your inquiry in 24 working hours.
2 Experienced staffs answer all your questions in fluent English.
3 Customized design is available. UEM&UBM are welcomed.
4 Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staff.
5 Special discount and protection of sales are provided to our
distributor.
6 Professional factory : We are manufacturer, specializing in
producing all kinds of steel poles for more than 20 years,
competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order
quantity is big enough. But the shipment charges is usually paid by
your side, the charges will be rebounded when we have formal order.
8 As an honest seller, we always use superior raw material,
advanced machines, skilled technicians to ensure our products to be
finished in high quality and stable feature. Welcome to contact us
or visit our company.
if you have any question or need additional information ,pls feel
free to contact me !
