    Power Tubular Structure Electrical Transmission Poles 60FT 75FT 85FT 550KV

    Ask Lasest Price
    Brand Name : milky way
    Model Number : yin-he
    Certification : ISO BV
    Price : USD 130-180per pieces
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 pieces per week
    Delivery Time : always 2 weeks
    • Product Details
    • Company Profile

    Power Tubular Structure Electrical Transmission Poles 60FT 75FT 85FT 550KV


    Description:


    Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.


    We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on


    11.8m - 1250dan Electricity Pole Galvanized Steel Pole 14m For Electric Line 0


    specification:


    Material

    Usually Q345B/A572,minimum yield strength>=345n/mm2

    Q235B/A36,minimum yield strength>=235n/mm2

    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

    Lamp power

    20 W- 400 W (HPS/MH)

    220V (+-10%) /50Hz

    Torlance of the dimenstion+- 2%
    Power10 KV ~550 KV
    Safety Factor

    Safety factor for conducting wine : 8

    Safety factor for grounding wine : 8

    Design Load in Kg300~ 1000 Kg appliced to 50cm from the to pole
    MarksNane palte through rivert or glue ,engrave ,emboss as per customer requirement
    Surface treatmentHot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.
    Joint of PolesInsert mode,innerflange mode,face to face joint mode .
    Design of poleAgainst earthquake of 8 grade
    Wind Speed160 Km/Hour
    Minimum yield strength355 mpa
    Minimum ultimate tensile strength490 mpa
    Max ultimate tensile strength620 mpa
    StandardISO 9001
    Length of per sectionWithin 14m once forming without slip joint
    WeldingWe has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
    Thickness1 mm to 30 mm
    Production ProcessRew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
    PackagesOur poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

    Our Servises:


    1.Reply your inquiry in 24 working hours.


    2. Experienced staffs answer all your questions in fluent English.


    3. Customized design is available. UEM&UBM are welcomed.


    4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.


    5. Special discount and protection of sales are provided to our distributor.


    6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.


    7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.


    8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

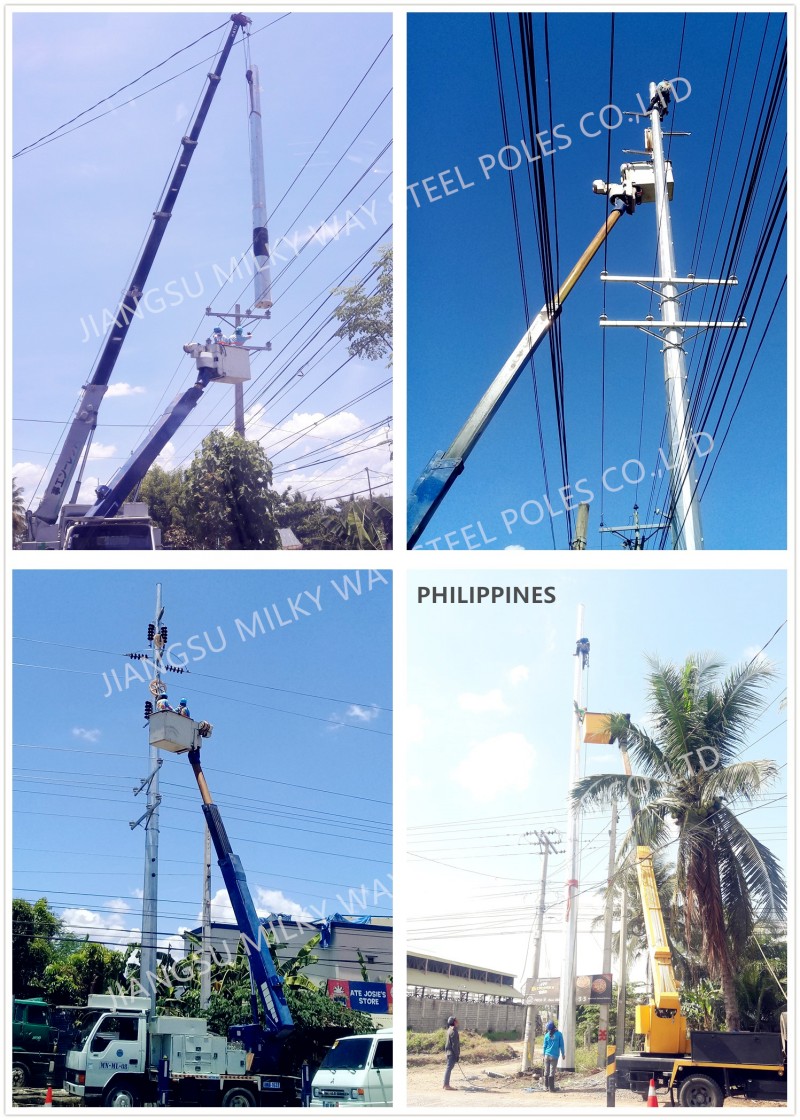

    Project:


    We have completed many big and important project all over the world and win the trust of our client.

    Outdoor Multi Sided Solar 8M to 14M Height Street Light Poles With 2M Cross Arm 1
