80ft Mono Pole Tower galvanized single member self supporting slip sleeve flange joint for GSM monopole cell tower

Specifications:

Quick Detials

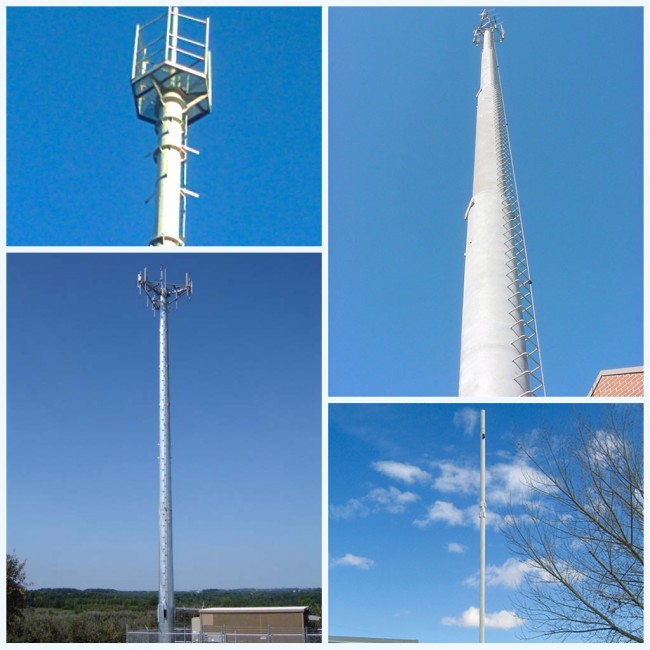

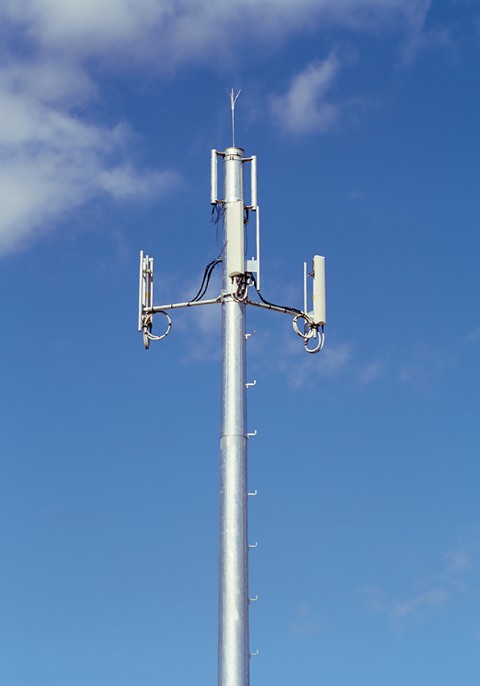

Monopole Towers are used for a variety of communication applications and are ideal for use when zoning is difficult. They are the least intrusive and easiest communication towers to erect making them one of the most popular tower types in the wireless communication industry. Monopoles can also be designed as concealment poles: pine poles, flag poles, palm poles and other stealth towers. Many uses include cellular monopoles, wireless internet monopoles, homeland security monopoles, two-way monopoles, and wind tower monopoles.

Monopole towers are developed for the telecommunication business as an alternative to the lattice tower. Its characteristics are a slim design without visible assemblings between the sections and a high load capacity with a small deflection in the top.

The monopole towers are made as 12 to 18 angular tubes with decreasing diameters. As an extra service the tower can be painted in an optional colour.

The monopole towers are designed for up to four operators without making the deflection exceed more than 1 degree. Standard monopole towers are delivered in heights up to 48 meters.

The monopole towers can be delivered with extra equipment such as a combined ladder and safety device system as well as an anti climb device in the bottom.

Single Member Self-Supporting Structures

Milky Way monopoles are single member self-supporting structures used in urban areas where space is limited. We offer steel tapered monopoles or flanged pipe poles depending on your communication application. All of our poles are custom-engineered to meet your specifications.

Slip-Sleeve Monopoles

Milky Way’s steel tapered monopoles are designed to carry wireless and microwave communication equipment. Fabricated in our state-of-the-art facilities, our monopoles are available 12, 16, or 18-sided and in heights that meet your specifications.

Workshop

Milky Way monopoles feature:

Minimum of 65 ksi high-strength steel

Slip-sleeve tapered sections

Steel templates to assure proper base bolt alignment

Step bolt working rings at handhole levels

Loop step bolts at all working points

Flanged Pipe Poles

Milky Way flanged pipe poles are capable of carrying a variety of communication applications. Internally and externally flanged, they are custom-engineered to heights that meet your specifications.

Our pipe poles feature:

Steel templates to assure proper base bolt alignment

Step bolt working rings at handhole levels

Loop step bolts at all working points

Recommended Use for Flange Monopole Towers:

GSM/CDMA Equipment
Video Surveillance Equipment
Wind Turbines
FM Radio
TV
Meteorological Equipment
Flood Light
Flag Poles
Traffic Control Cameras
Crime Prevention Video Surveillance

Mono Pole Tower Product

Estbilsed  in 1989,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan  in  1991 of 132 KV transmission poels ,our products have been deliveried  to more than 70 contries and areas ,including America,Australia ,Russia  ,Genmery ,Span,Philippines ,Malaysia and so on

To assure our products qualified ,we take steps as follows :

1. Management  team : We have employ the foreign export  to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3. Lofting and design software :We have  transmisson power pole design software which can help us design all kinds of steel pole  ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

4. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .

We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions .
