TOP SAFETY STANDARD GR65 HIGH VOLTAGE Electric Transformer

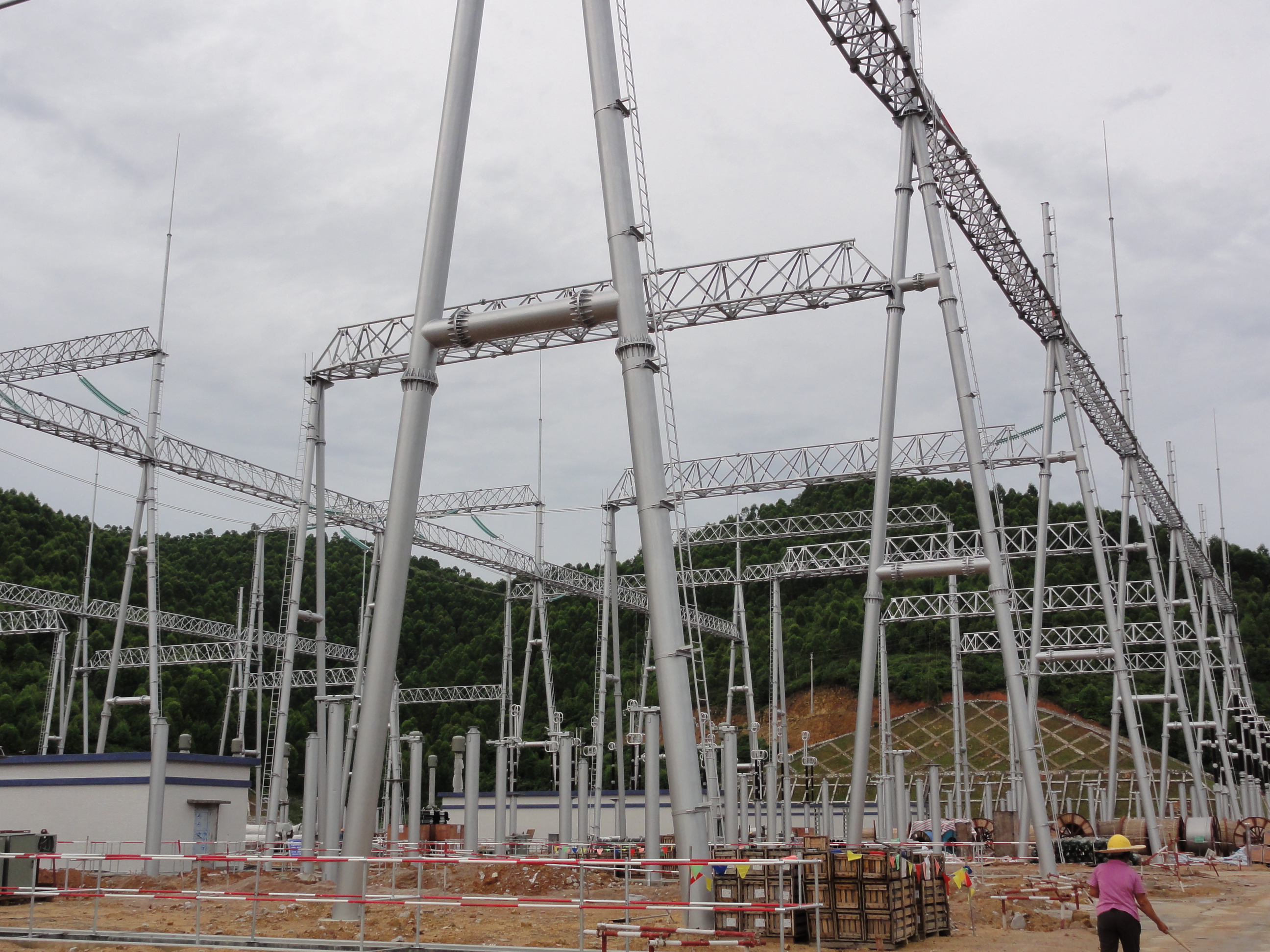

Substation Structure Series Galvanized Steel Poles
Main Features
1) Enhances both electrical and mechanical performance
2) Well suited for terminal connections on high voltage side of a
transformer
3) Accurate dimension and resistivity to adverse conditions
4) High tensile strength with optimum tolerance capacity
DETAILS
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52- |
| Torlance of dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer
requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required.
|
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode .
|
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng
(longitudinal )→Dimension verify→Flange welding →Hole drilling
→Calibration → Deburr→Galvanization or powder coating ,painting
→Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and
bottom ,anyway also can following by client required , each 40HC or
OT can loading how many pcs will calculation base on the client
actually specification and data. |
OUR COMPANY
Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in
Wuxi ,East of China ,near one of the largest sea port of China
,Shanghai ,Port .
Our Products have been widely used in the power transmission
,signal transmission and lighting for street ,road ,square
,palaestra . and so on
We have plenty of export experience . Since our first overseas
order from Pakistan in 1991 of 132 KV transmission poles ,our
products have been deliveried to more than 70 countries and areas
,including America ,Australia ,Russia ,Genmery ,Span, Philippines
,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we
offered is of sound quality which made from qualified material with
our professional workers and advance equipment .
| OVERSEAS PROJECT |
| COUNTRY | UTILITY | VOLTAGE LEVEL | TYPE | YEARS OF SUPPLY |
| PHILIPPINES | NEA,NGCP | 69KV | 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT | EVERY YEAR |
| GHANA | GHANA ELERCITY COMPANG | | 10m,11m | 2015 |
| PAKISTAN | WAPDA | 132KV | SPA,APD,SPG | 2013 |
| SAUDI ARABIC | SAUDI ELECTRICITY COMPANY | | 10M ELECTRIC POLE | 2011 |
| ECUADOR | CELEC | 138KV | PB-B40 | 2009 |
| MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES. |
PROFESSIONAL TEST
SERVICE
Pres-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the
pole
* Sample testing support. * Engineers available to arrange overseas.
* View our Factory.
FAQ
Trade terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor
part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price,
please specify which exact model you need, and tell us your order
quantity so that we can calculate the local transport charges and
sea freight.
2. MOQ: 1 sets.
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C
at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic paper or according to clients requirement.
5. Delivery: for 30 sets, goods can be ready for shipment within 10
workdays after receiving deposit.
6. Parts Design Service Period: 20 years.
Our steel pole, steel poles , steel power poles ,power steel poles,
electrical poles, electrical power poles, power poles, power
distribution equipment poles , electric power transimission
&distribution steel poles ,hot-dip-galvanized steel poles ,lamp
poles ,road poles, streeting lighting poles, street lamp poles
,solar street lamps steel poles ,high mast lamp poles,road lamp
poles, the steel street lamp poles, hot-dip-galvanized steel
lighting ,outdoor lighting ,outdoor lamps ,street lighting poles
,steel post ,street poles, lamp parts ,lighting fixture ,lighting
poles ,lighting equipment ,lighting decoration ,lighting product ,
street lighting body, high mast lighting steel poles
&tower,electric poles, round&square street lighting steel
poles with double arm or single arm . Stainless steel poles, Flag
mast stainless steel pole, aluminum street light poles, traffic
lighting steel poles, telecom tower poles , baseplate , bearing
plate, base flanges , are made by hot-roll steel coil ,the process
as cut plate, bending ,forming,automatic welding,drill holes
,quality check before galvanized, hot dip galvanized or powder
coating , final quality check according by client required.
Q1. How can I get a price of needed pole? |
A: 1. Please give the exactly dimensions such as height, thickness,
material, top and bottom dia. We can according to your
specification give you a similar price. 2. You can send us a drawing; we can according to your drawing give
you one price. |
| Q2. I am a small wholesaler, do you accept small order? |
| A: It's no problem if you are a small wholesaler; we would like to
grow up with you together. |
| Q3. I am a designer; Can you help me to produce the sample which we
designed? |
| A: Our mission is to help customers to be successful. So it's
welcome if we can help you solve problem and make your design come
true. |
| Q4. We want be your agent of our area. How to apply for this? |
| A: Please send your idea and your profile to delia @yin-he.com |
| Q5. Tell me about your company? |
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a
manufacturer and exporter of all kinds of steel poles, including
street lighting pole, power transmission pole, floodlighting pole for large squares and
other steel products since 1991.Our poles have been exported to
more than 70 countries and areas. |
| Q6. Do you have some special policies for Brand company? |
A:Yes, we have some special support for the company who has own
brand but also in our VIP customers list. Please send us your
selling data of last year. So we can see how to support you for your
products in your market. |
| Q7. Can you make Door to Door service? Because i don't know how to
do customs clearance. |
A:Yes. We can make Door to Door service to help you save much time
of shipping. Also we have big discount with shipping company
because we have do much of this every day. So it will save your time also
money. |
